We will survey all accessible floors in the property and provide plans showing all visible walls, windows, doors, spot height levels, ceiling/roof heights, window sill/head heights.
Measured Building Survey & Drone Survey – Period Property
Accuracy matters, whether we’re capturing every detail inside a property or gaining a new perspective from above.
For this impressive period property, XP Surveys carried out a comprehensive measured building survey, producing highly accurate floor plans, elevations and cross sections to create a reliable existing building record for the architectural design team. Every measurement was captured with precision, providing a dependable foundation for planning, refurbishment and future development.

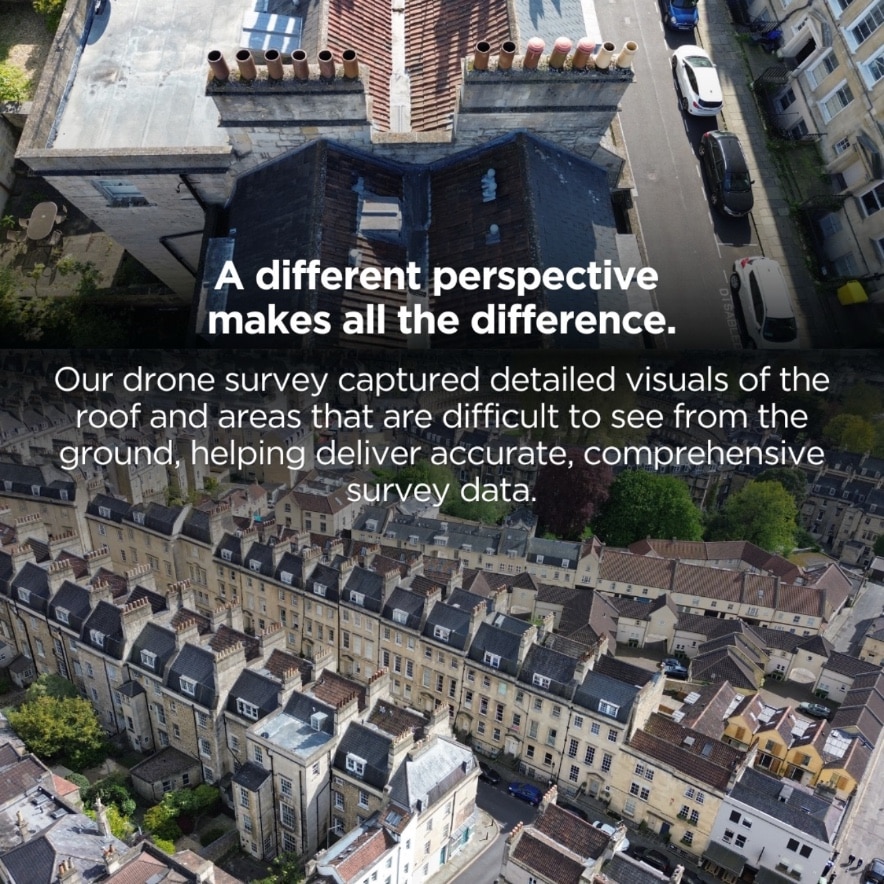

To complement the measured survey, we deployed drone technology to capture high-resolution aerial imagery of the roof and other inaccessible areas. This allowed us to safely document features that would otherwise require expensive access equipment, reducing costs, improving efficiency and ensuring a complete survey of the property.
By combining terrestrial laser scanning with drone surveying, we delivered a fast, accurate and comprehensive dataset, enabling the project team to move forward with confidence using precise existing-condition information.
We produced:
- Topographical Service
- Floor Plans
- 2D DWG Output
1900
Size of building
(m2)
3200
Topographic area
(m2)
1
Day(s) on site
7
Day(s) to produce
PDF/DWG drawings
