AutoCAD

EXAMPLE 1

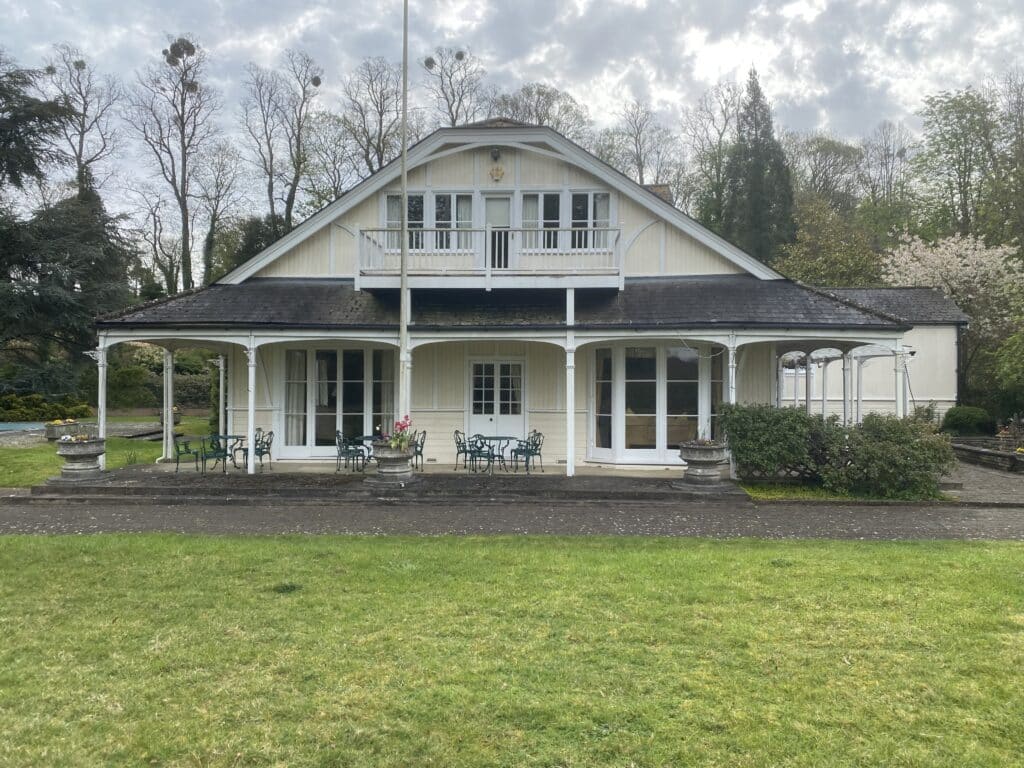

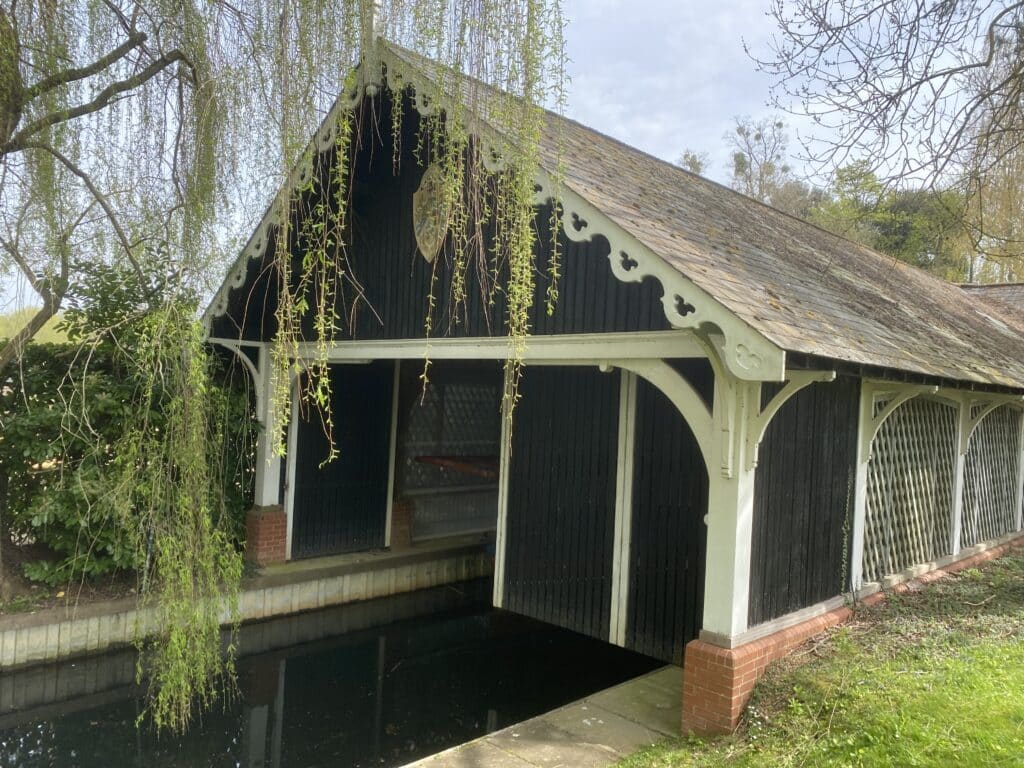

Site Inspection & Post Processing

Deliverables

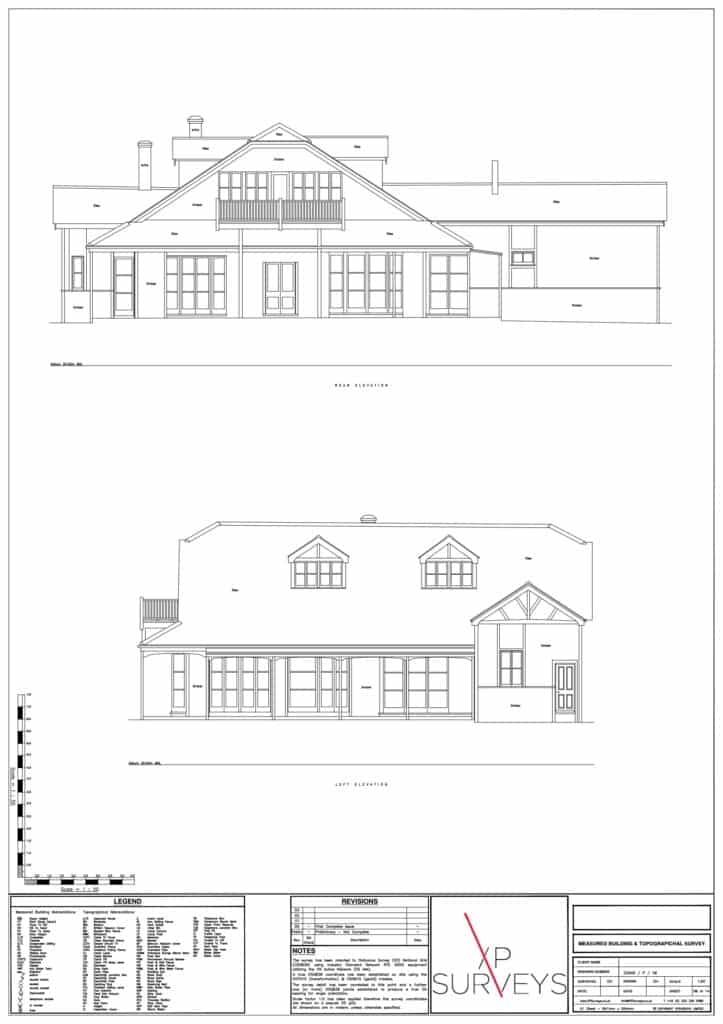

1sample3

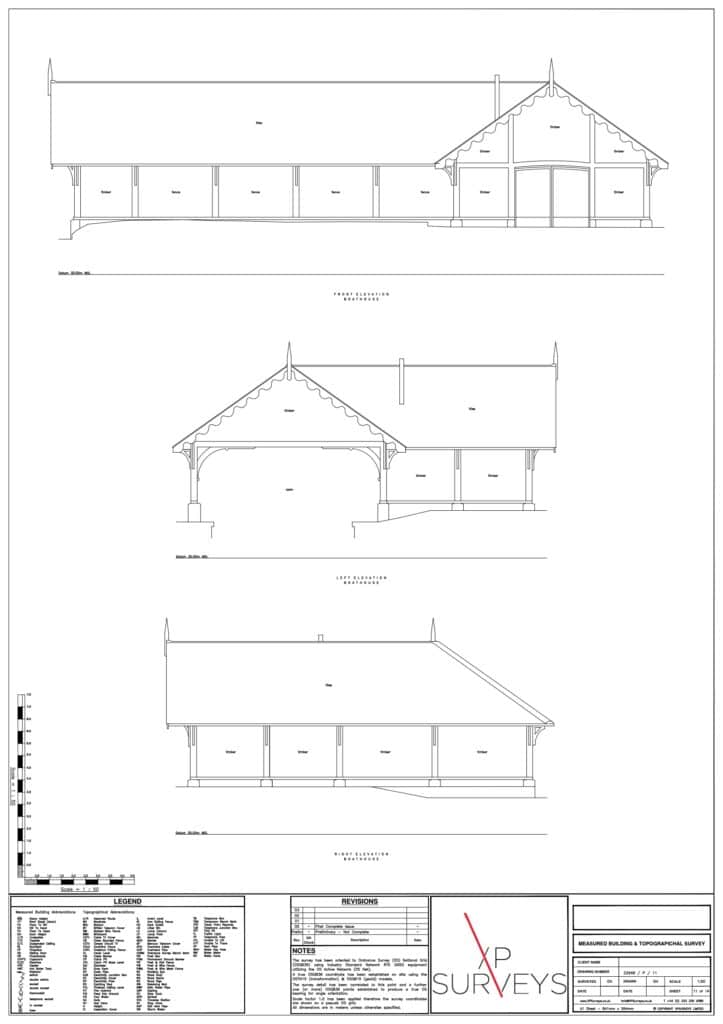

2sample3
3sample3
×

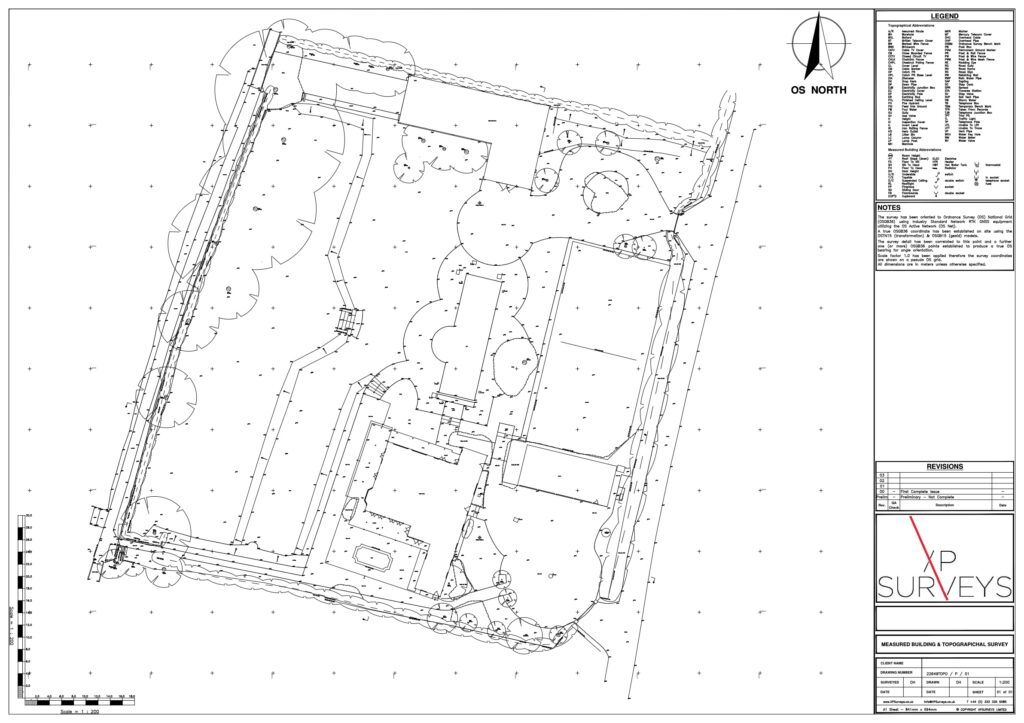

Enlarged survey drawing

Notes

The survey has been oriented to Ordnance Survey (OS) National Grid (OSGB36) using Industry Standard Network RTK GNSS equipment, utilising the OS Active Network (OS Net).

A true OSGB36 coordinate has been established on site using the OSTN15 (transformation) & OSGM15 (geoid) models.

The survey detail has been correlated to this point, and a further one (or more) OSGB36 points have been established to produce a true OS bearing for angle orientation.

A scale factor of 1.0 has been applied; therefore, the survey coordinates are shown on a pseudo OS grid.









EXAMPLE 2

Site Inspection & Post Processing

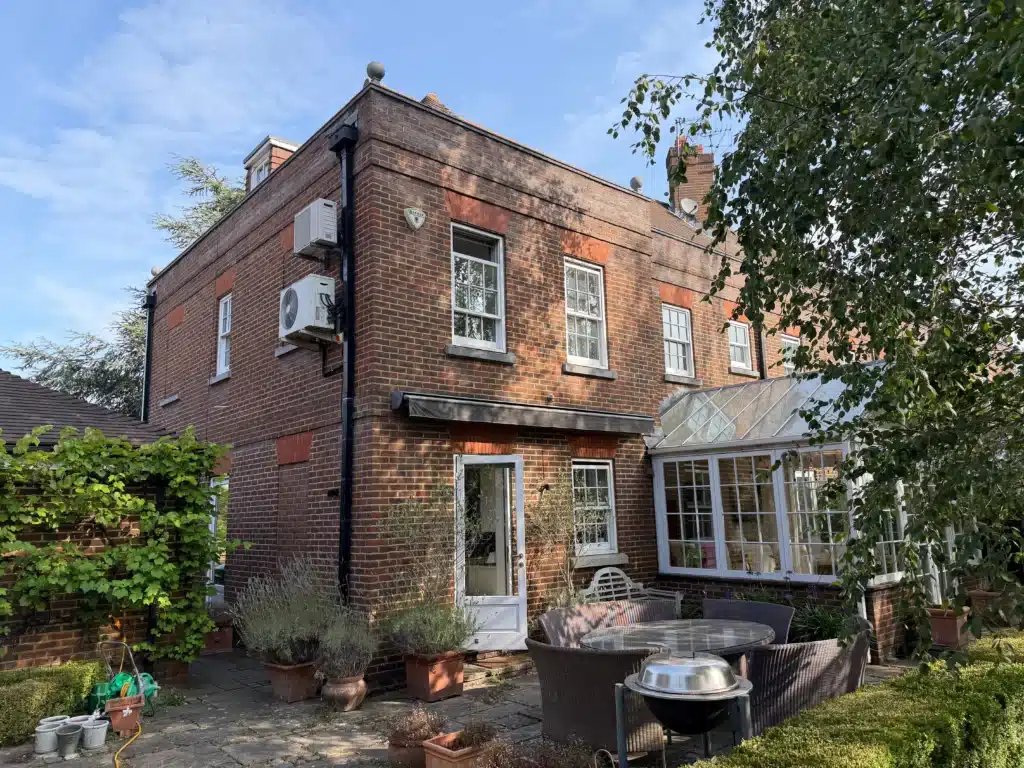

IMG_2205

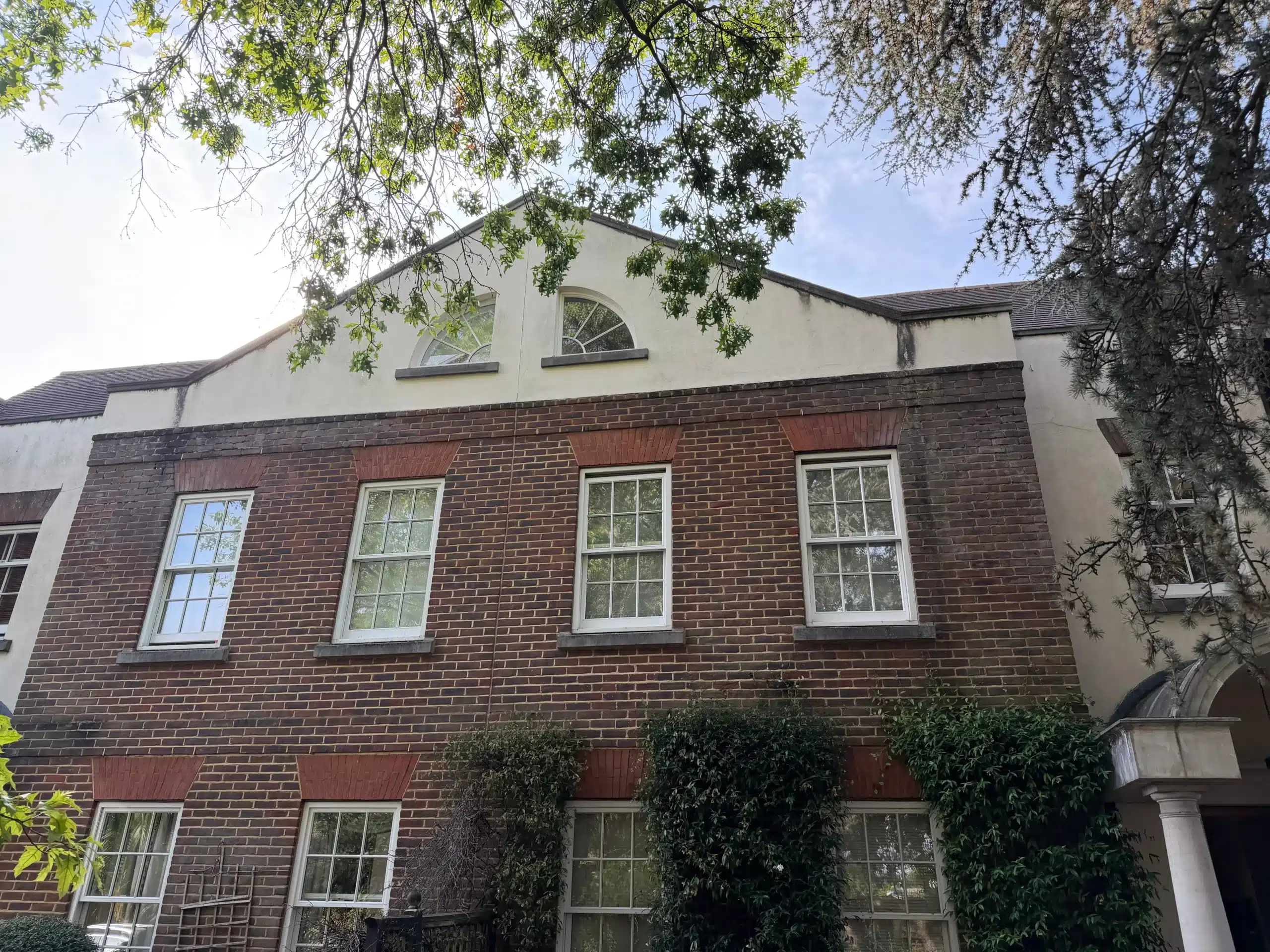

IMG_2188



Deliverables

AutoCAD drawing sample 1
AutoCAD drawing sample 2
AutoCAD drawing sample 3



Select Your Address

Edit

Select Your Services

Yes – This includes all plan types (i.e. floor, elevations, roof, sections).
No

  • We will survey all accessible floors in the property and provide plans showing all visible walls, windows, doors, spot height levels, ceiling/roof heights, window sill/head heights.

  • We will survey all accessible and visible sides of the property and provide elevation drawings showing the building outline, ridge/eaves heights, all external distinguishing elements such as windows, doors, rainwater pipes and other detailing. We will also include the outline of buildings within 3m of the host building.

  • Provided where our equipment has full visibility of the roof lines from ground level, we will note any estimated roof details on our drawings.

  • These are 'cut-through' cross-sectional drawings showing wall and floor details.

  • None
  • Basic
  • Mid
  • Full

None Selected

Select a topographical survey level to find out more.

Basic Topographical Survey

Will include the visible boundary outline only together with immediate ground levels around any buildings, and visible drainage cover location/levels.

Mid-level Topographical Survey

This topo will include the visible boundary outline, all key features and immediate ground levels within 3m of any buildings, and visible drainage cover location/levels.

Full Topographical Survey

Will include boundaries (including type and heights), building OUTLINES, adjoining buildings, trees / groups of trees (including trunk diameter, spread, height) (any diameter above 150mm would be shown), hardstanding, walls, fences, hedges, flowerbeds, kerblines, verges, manhole / service covers (including cover level), etc. plus all other visible salient features of the area.

Your Estimate

    • Total £999.99
    How do we calculate your estimate?

    We use Area data from your property's EPC certificate and the UK Ordnance Survey database to calculate your quote estimate. If there is not enough data in the UK database we cannot provide an instant quote, but one of our team will be able to provide a formal written quote by email within 48 working hours. If the database holds incorrect data on your property you will still be provided an estimate, but our fee is subject to change to suit the actual size of your property

    Your chosen outputs:

      (m2) Property Area
      (m2) Site Area
      If additional services or outputs are required during the delivery stage, additional fees will be added to your final bill as per our T&Cs here
