How laser-scanned cross sections and reflected ceiling plans give structural and M&E engineers reliable existing data for coordination, clash detection and buildable design.
Every refurbishment, fit-out or services upgrade depends on one thing: knowing exactly what already exists. For structural and M&E engineers, assumed dimensions and outdated record drawings are one of the largest sources of design risk in existing buildings.
A ceiling void that is 80mm shallower than expected, or a downstand beam missing from the record drawings, can force ductwork reroutes, structural redesign and costly variations on site. This article explains how measured cross sections and reflected ceiling plans (RCPs), extracted from a registered point cloud, give structural and MEP disciplines a shared, verified base for coordination.

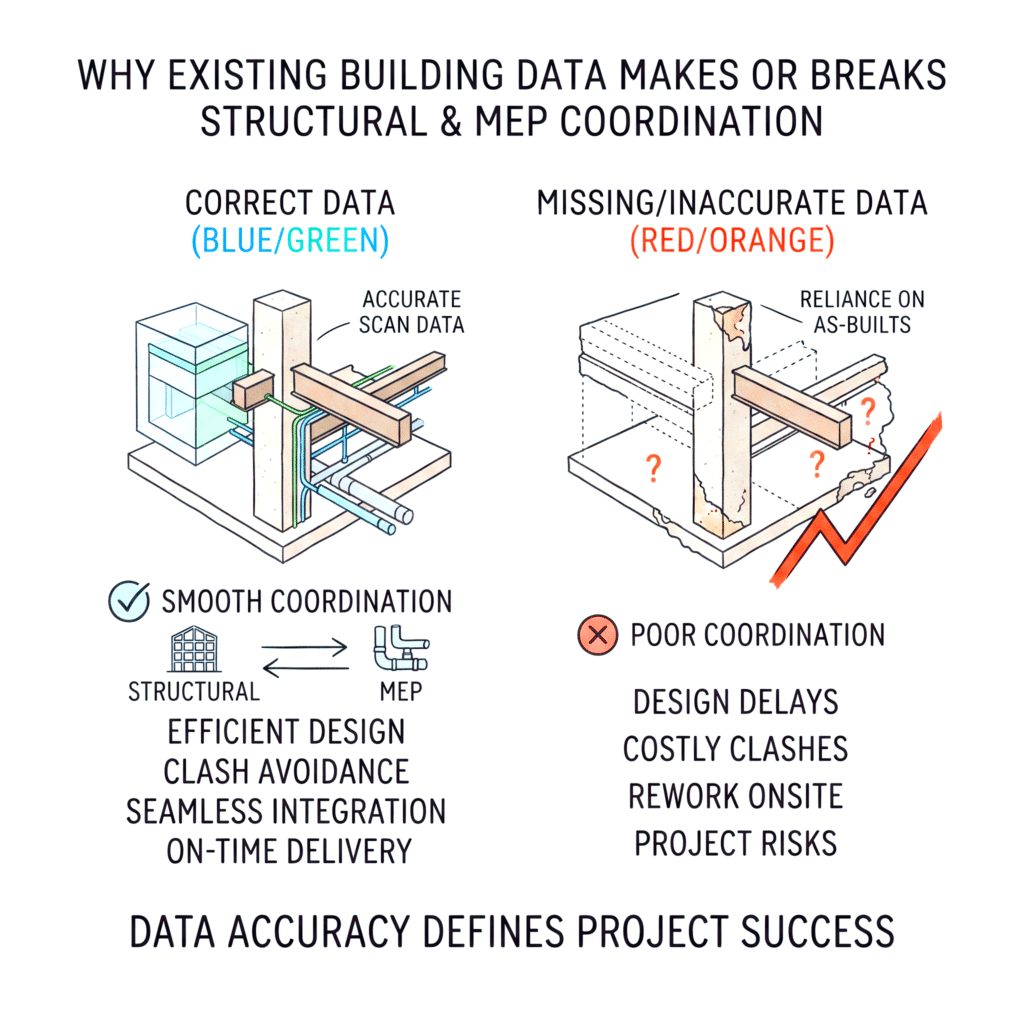

The coordination problem in existing buildings
On new build projects, coordination happens between federated design models. On existing buildings, the largest unknown is the building itself. Record drawings typically show design intent rather than what was built, and decades of alterations are rarely documented. Typical problems include slab deflection reducing available void depth at midspan, downstand beams and haunches absent from the general arrangement drawings, transfer structures that change the load path, and abandoned services still occupying ceiling and floor voids.
Without measured data, engineers either apply generous tolerances, which sacrifices usable void space, or design to nominal dimensions and discover clashes during first fix. Neither approach is efficient, and both push risk downstream to the contractor.
How the data is captured
Survey control and datum
Every project begins with a survey control network established using a total station, with levels related to Ordnance Datum or an agreed site datum. This means internal sections, ceiling levels and floor levels all sit in one coordinate system. Where the design extends outside the building, for example new plant on a roof, external condenser compounds or drainage connections, the internal data can be combined with a topographical survey on the same control, so external levels, manhole inverts and threshold heights tie directly to the internal structure.
Laser scanning above and below the ceiling
We capture the building using 3D laser scanning, with scan density and setup spacing chosen to resolve the elements engineers actually need, such as beam flanges, hanger rods and small bore pipework. Scans are registered using targets and cloud-to-cloud alignment, and registration quality is checked against the control network before any drawing work begins.
Where ceiling tiles can be lifted, we scan both the occupied space and the void above. This records the true soffit, the structure within the void and the services occupying it, rather than only the finished ceiling surface. In plasterboard ceilings, access hatches are used to sample void conditions where full access is not possible.
Specified accuracy
Work follows RICS guidance for measured surveys, with accuracy bands and the level of detail agreed at the outset. Engineers should specify the accuracy they need for the task: void coordination and structural appraisal usually justify a tighter specification than general space planning.
Cross sections for structural engineers
Sections are cut directly from the point cloud, so they show the structure as it stands rather than as it was drawn. Within a measured building survey, structural sections typically record:
- Structural floor-to-floor heights, finished floor levels and screed build-ups where exposed
- Slab thicknesses at openings and penetrations, and soffit profiles showing any deflection or sag
- Beam depths, flange widths, downstand positions and bearing locations
- Column grid positions, verticality and visible section sizes
- Transfer beams, haunches, nibs and changes in structural form
- Risers, lift shafts, stair cores and existing slab openings
- Roof structure, including rafter, purlin and truss arrangements and bearing levels
Sections on demand.
Because sections come from measured data, they can be cut at any location after the survey. If the engineer later needs a section through a particular bay, riser or plant deck, it can be produced from the existing point cloud without a return visit.
Soffit deviation analysis can also be run across a floor plate, comparing the measured soffit against a level reference plane. This highlights deflection and construction tolerances visually and helps engineers judge whether a floor can accept additional load or new services hung from the slab.
Reflected ceiling plans for M&E engineers
A reflected ceiling plan shows the ceiling as though mirrored onto the floor below, keeping the same orientation as the floor plan so the two overlay directly. For services design, it is the drawing that shows what must be retained, relocated or worked around.
Ceiling finishes and levels
- Suspended grid layouts, setting out lines and tile modules
- Plasterboard ceilings, bulkheads, margins and shadow gaps
- Ceiling level changes with spot levels at a consistent spacing
- Access hatches and inspection panels serving valves, dampers and equipment
Ceiling mounted services
- Luminaires, emergency lighting and exit signage
- Supply and extract diffusers, return grilles and linear slots
- Sprinkler heads, smoke and heat detectors and occupancy sensors
- Fan coil units, ceiling cassettes and other suspended plant
When RCPs are read alongside void sections, M&E engineers can see both the finished ceiling and the clear zone above it. This is what drives decisions on duct sizing and aspect ratio, gradients on drainage and condensate runs, containment routes, and whether plant can be ceiling mounted or must move to a plant room.
Bringing structure and services together
The value comes when both disciplines work from the same verified base. With accurate sections and RCPs, the design team can establish true clear void depths between soffit and ceiling, map the critical zones where downstands reduce the available zone, plan crossings beneath beams with known clearances and agree ceiling heights that are achievable rather than assumed. Proposed routes can be checked against existing services before the design is fixed, rather than after the contractor raises an RFI.
On larger projects, the same data can be developed into a model through
Scan to BIM
, with structural elements and existing services modelled to an agreed level of detail. That model can then be federated with the new structural and MEP design models, so clash detection starts with the existing building rather than only between new elements.
Deliverable formats
| Format | Typical use in coordination |
|---|---|
| 2D CAD (DWG) | Sections, elevations, floor plans and RCPs on agreed layers for 2D design and markup |
| Revit model (RVT) | Existing structure and services for federation with new design models |
| Point cloud (E57, RCP, RCS) | Direct checking of routes and clearances in Revit, AutoCAD or Navisworks |
| IFC | Open BIM exchange across different authoring platforms |
Where projects follow ISO 19650, file naming, layer conventions and model content can be aligned with the exchange information requirements before the survey starts.
Reducing risk on site
Accurate existing information reduces RFIs, abortive work and late design changes. Installers receive drawings that reflect real conditions, contractors can price with more certainty, and clients get a more predictable programme with fewer variations.
